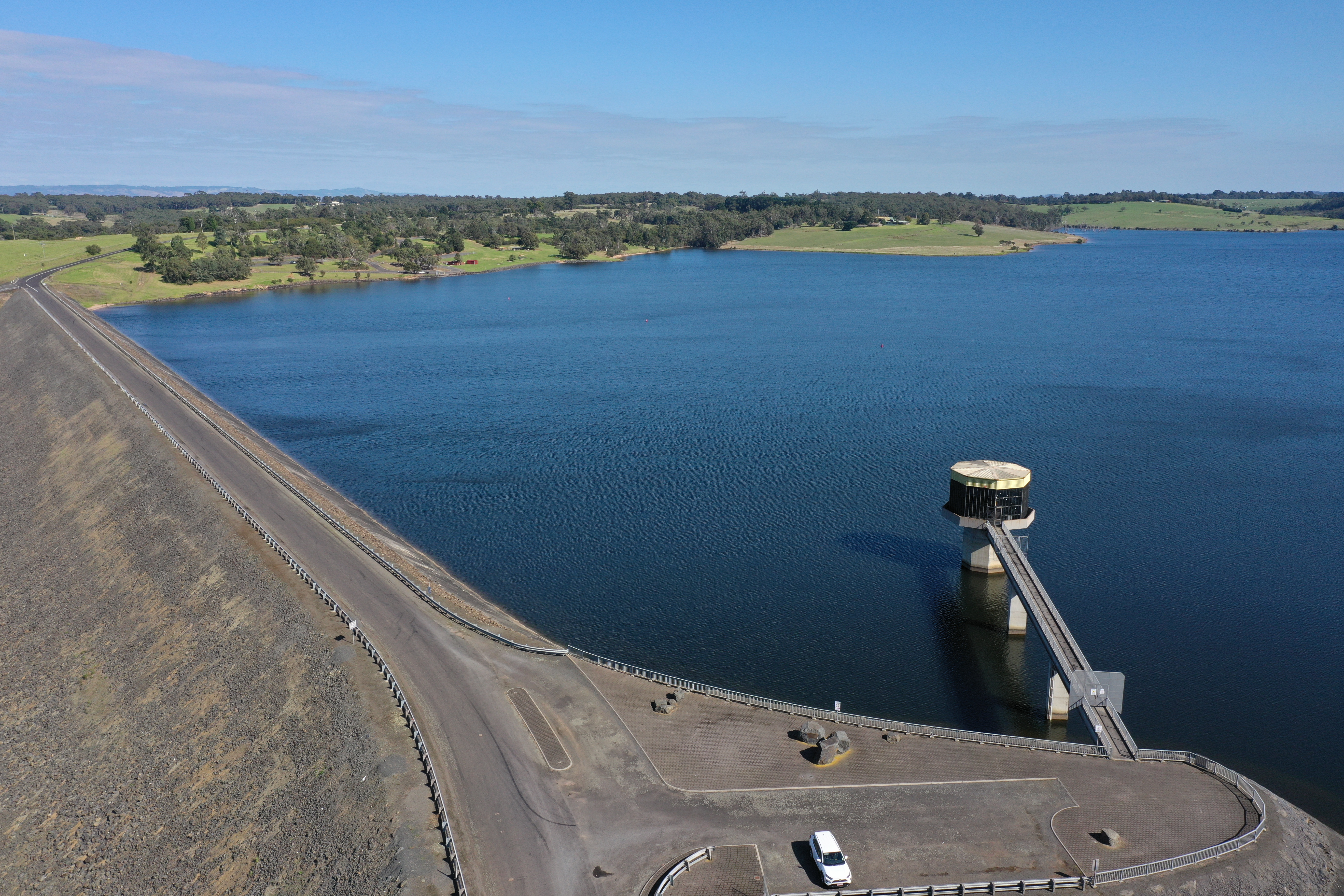

BLUE ROCK
| Name | BLUE ROCK |
|---|---|
| Secondary Dam | No |
| Main Dam | |
| Reservoir Name | LAKE BLUE ROCK |
| Purposes | S - water supply,H - hydroelectric,I - irrigation |
| Owner/Operator Name | Southern Rural Water |
| Consultant Name | Rural Water Commission, Victoria |
| Contractor Name | Rural Water Commission, Citra, White Industries |
| Comment One | |
| Comment Two | |
| URL | https://en.wikipedia.org/wiki/Blue_Rock_Dam |
| PSP | |
| Electrical Power (MW) | 3 |
| Mean Annual Energy (GWh) | 9 |
| Resettlement |
| Alternative Name | |
| National Code | |
| Dam Code | I00900404 |
| Nb References ICOLD | 2 |
| References ICOLD | J. Willey, T. Ewing, B. Wark, E. Lesleighter (2012). COMPLEMENTARY USE OF PHYSICAL AND NUMERICAL MODELLING TECHNIQUES IN SPILLWAY DESIGN REFINEMENT / UTILISATION COMPLÉMENTAIRE DES TECHNIQUES DE MODÉLISATION NUMÉRIQUE ET PHYSIQUE POUR L'AMÉLIORATION DE LA CONCEPTION DES DÉVERSOIRS. 24th Congress of ICOLD-CIGB. Kyoto, Japan. CRC Press|ICOLD-CIGB (1988). New construction methods - State of the art / Nouvelles méthodes de construction - Aperçu général. Bulletin n° 63 . CRC Press |
| Reserved Committee O |
| Continent | AUSTRAL-ASIA |
| Country Name | Australia |
| French Country Name | |
| International | |
| River | Tanjil |
| City | Moe |
| State | Victoria |
| Longitude | 146.227942 |
| Latitude | -38.079379 |
| Zone ISO 3166 | AU |
| Built | 1984 |
| Particular | |
| Dam Type | ER |
| Sealing | ie |
| Foundation | R |
| Height (m) | 72.0 |
| Length (m) | 600.0 |
| Spillway Capacity (m³/s) | 1150.0 |
| Spillway Type | L |
| Detailed Type of Dam | ECED - embankment dam with a clay central core |
| Elevation (m) | 147.25 |
| Volume Dam (1,000m³) | 198280 |
| Reservoir Volume (1,000m³) | 198280 |
| Reservoir Area (1,000m²) | 881000 |
| Reservoir Length (km) | |
| Catchment (km²) | 370.0 |
| Irrigated Area (km²) | 220.0 |
| Flood Protect (% of reservoir volume) | 0 |
| Sedimentation | |
| Reservoir Code | R00900404 |
| Reservoir ISO 3166 | AU |
